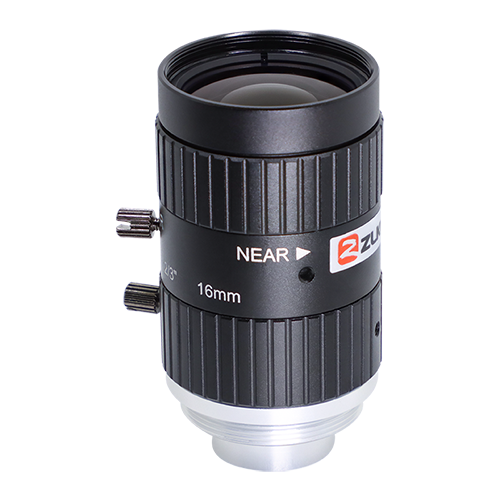

10MP high resolution lens 16mm

Working Distance

Magnification

2/3"Field of View(mm)

Model

VM1628MP10

mm

X

H

V

Image Size

2/3-inch

1000

0.016X

532.24

442.39

Focal length

16mm

900

0.018X

479.18

398.28

F No.

F2.8-16

850

0.019X

453.04

376.56

M.O.D(m)

0.15-Inf.

800

0.020X

426.58

354.56

Operation

Iris

Manual

750

0.021X

400.27

332.69

Focus

Manual

700

0.023X

373.82

310.71

Angle of View

(D×H×V)

2/3"

37.9°×30.8°×23.3°

650

0.025X

347.33

288.69

1/2"

28.1°×22.6°×17.1°

600

0.027X

320.91

266.73

1/3"

21.2°×17.0°×12.8°

550

0.029X

294.38

244.68

TV Distortion

-0.15%

500

0.032X

268.08

222.82

BFL

8.63mm

450

0.036X

241.71

200.90

Flange FL

17.526mm

400

0.040X

215.24

178.90

Mount

C-Mount

350

0.046X

188.83

156.95

2/3"FOV

83.0mm×69.0mm(WD=150mm)

300

0.053X

162.39

134.97

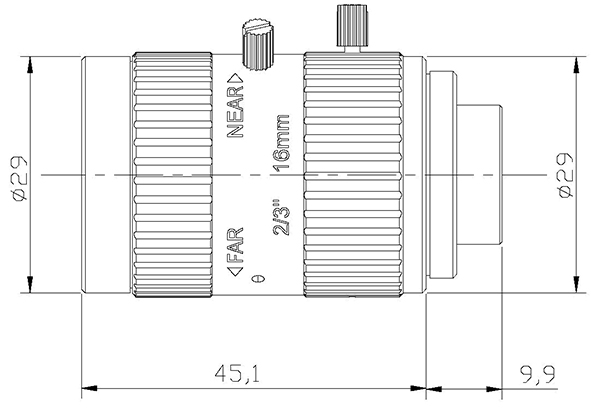

Dimension

Φ29×45.1mm

250

0.064X

136.03

113.06

Weight

69.2g

200

0.080X

109.52

91.03

Filter

M27 P=0.5mm

150

0.107X

83.08

69.05

Working Temperature

-20ºC ～ +60ºC

100

0.160X

59.28

49.27
