FA Lens HM5018MP3 50mm Manual Iris Machine Vision Lens 2/3-inch F1.4 100lp/mm C-Mount
2/3″C-Mount f=50mm F1.8
Can suppress stray light
Low distortion,high contrast
Locking set screws for focus and Iris
Metal structure，compact appearance
Used in Industrial Camera,ITS Camera
View phone Inquiry now
Tel:+86 13570283679
IntroductionSpecificationsDownloadOther Product
※ Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=50mm
◆ F No.：F1.8-C
◆ Features：2/3-inch 50mm 100lp/mm Manual Iris Lens  FA  Lens C Mount HD Lens

※ Model
HM5018MP3

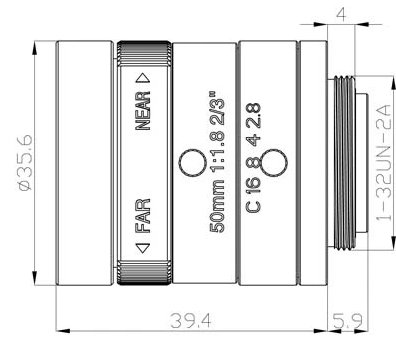

※ Dimension


※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

Model

HM5018MP3

Image Size

2/3-inch

Focal length

50mm

F No.

F1.8-C

M.O.D(m)

0.3-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

12.6°×9.3°×7.5°

1/2"Type

10.6°×7.7°×5.4°

Distortion

2/3"Type

-0.2%@y=5.5mm

1/2"Type

-0.1%@y=4.0mm

Back focal length

12.94mm

Mount

C-Mount

Object Dimension (mm) WD=500mm

101.4x81.0x60.6mm

Dimension

Ф35.6x39.4mm

Weight

98.0g

Horizontal Resolution

100lp/mm

Entrance Pupil Diameter

27.74mm

Filter Thread

M30.5x 0.5

Working Temperature

-20ºC ～ +60ºC

HM5018MP3 Specifications
