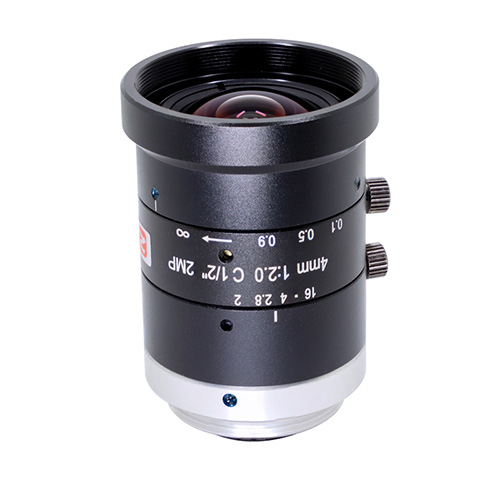

    FA Lens HM0420MP2 4mm Manual Iris Machine Vision Lens 1/2-inch F2.0 100lp/mm C-Mount
    1/2″C-Mount f=4mm F2.0
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure,compact appearance
    Used in Industrial Camera,ITS Camera
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/2″ C-mount
    ◆ Focal length:f=4mm
    ◆ F No.:F2.0-16
    ◆ Features:1/2-inch 4mm 100lp/mm Manual Iris Lens  FA  Lens C Mount HD Lens

    Model
    HM0420MP2

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on

    2MP 4mm FA Lens C Mount

    Model

    HM0420MP2

    Image Size

    1/2-inch

    Focal length

    4mm

    F No.

    F2.0-16

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Angle of View

    (D×H×V)

    1/3"

    72.4°×60.6°×47.2°

    1/2"

    88.2°×76.0°×60.6°

    Distortion

    <1.6%

    BFL

    8.7mm

    Mount

    C-Mount

    Object Dimension

    156mm×117mm(WD=100mm)

    312mm×234mm(WD=200mm)

    648mm×351mm(WD=300mm)

    936mm×702mm(WD=600mm)

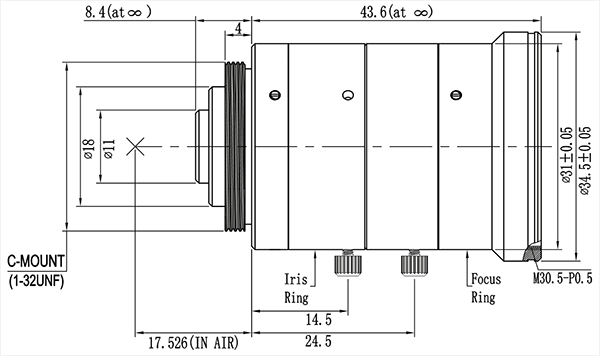

    Dimension

    Φ34.5×43.6mm

    Weight

    90.5g

    Horizontal Resolution

    100lp/mm

    Filter Thread

    M30.5*0.5

    Working Temperature

    -20ºC +70ºC

    HM0420MP2 Specifications
