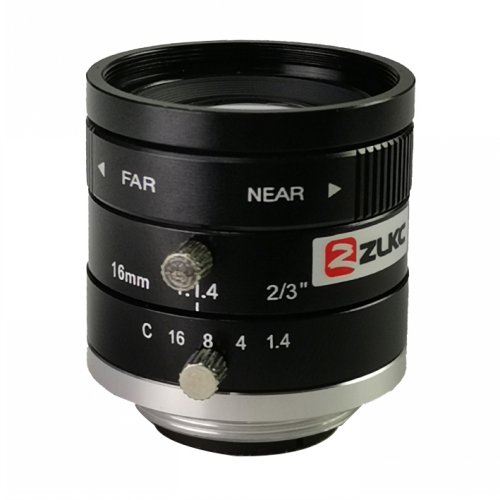

    FA Lens HM1614MP3 16mm Manual Iris Machine Vision Lens 2/3-inch F1.4 100lp/mm C-Mount
    2/3″C-Mount f=16mm F1.4
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in Industrial Camera,ITS Camera
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=16mm
    ◆ F No.：F1.4-C
    ◆ Features：2/3-inch 16mm 100lp/mm Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    HM1614MP3

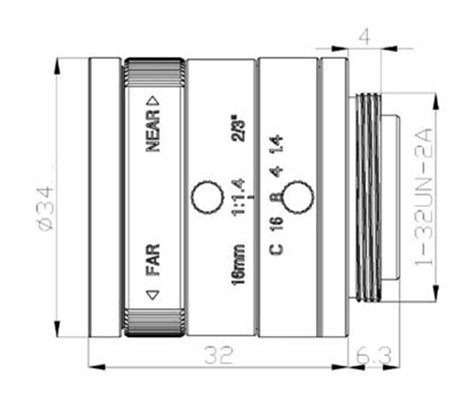

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HM1614MP3

    Image Size

    2/3-inch

    Focal length

    16mm

    F No.

    F1.4-C

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    37.5°×30.5°×23°

    1/2"Type

    27.8°×22.4°×16.9°

    Distortion

    2/3"Type

    -1%@y=5.5mm

    1/2"Type

    -0.56%@y=4.0mm

    Back focal length

    12.67mm

    Mount

    C-Mount

    Object Dimension (mm) WD=300mm

    215.2x170.9x127.5mm

    Dimension

    Ф34x32mm

    Weight

    83.0g

    Horizontal Resolution

    100lp/mm

    Entrance Pupil Diameter

    11.43mm

    Filter Thread

    M30.5x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    HM1614MP3 Specifications
