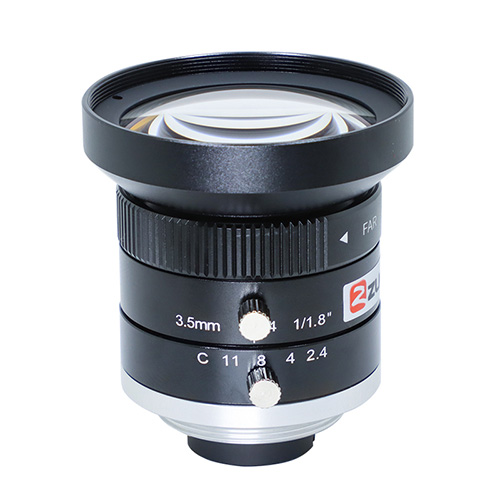

    FA Lens HM035MP2 3.5mm Manual Iris Machine Vision Lens 1/1.8-inch F2.4 100lp/mm C-Mount
    1/1.8″C-Mount f=3.5mm F2.4
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure,compact appearance
    Used in Industrial Camera,ITS Camera
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/1.8″ C-mount
    ◆ Focal length:f=3.5mm
    ◆ F No.:F2.4-C
    ◆ Features:1/1.8-inch 3.5mm 100lp/mm Manual Iris Lens  FA  Lens C Mount HD Lens

    Model
    HM035MP2

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on

    2MP 3.5mm FA Lens C Mount

    Model

    HM035MP2

    Image Size

    1/1.8-inch

    Focal length

    3.5mm

    F No.

    F2.4-C

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Angle of View

    (D×H×V)

    1/1.8"

    104.5°×94.3°×78.0°

    1/2"

    99.6°×87.9°×71.1°

    1/3"

    84.2°×71.1°×55.6°

    Distortion

    -1.23%

    BFL

    8.57mm

    Mount

    C-Mount

    Object Dimension

    1/1.8"

    350.5mm×261.3mm(WD=150mm)

    1/2"

    312mm×230.5mm(WD=150mm)

    1/3"

    230.5mm×170mm(WD=150mm)

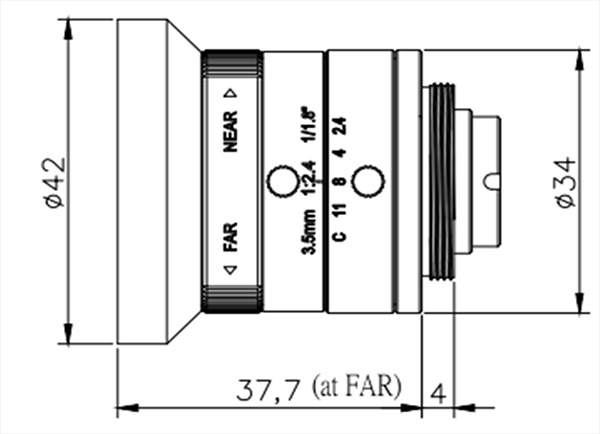

    Dimension

    Φ42×37.7mm

    Weight

    130g

    Horizontal Resolution

    100lp/mm

    Filter Thread

    M40.5*0.5

    Working Temperature

    -20ºC +70ºC

    HM035MP2 Specifications
