Model |
VM12120MPC |
|
Image Size |
1/1.8-inch |
|
Focal length |
12-120mm |
|
F No. |
||
M.O.D(m) |
1.2m |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Zoom |
Manual |
|
Distortion |
1/1.8"Type |
-0.12%@wide -0.05%@tele |
Horizontal Angle of View |
1/1.8"Type |
W32.4°x24.6° T3.7°x2.8° |
Mount |
C-Mount |
|
Back focal length |
10.78mm |
|

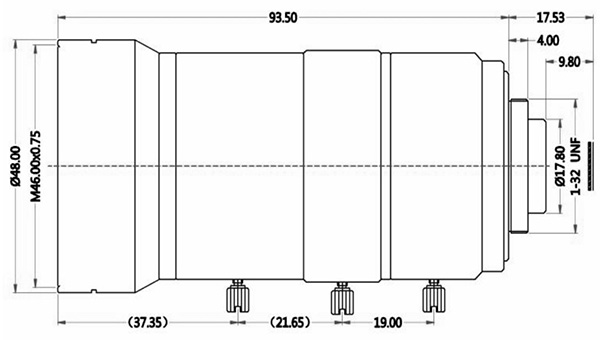

Dimension |
Φ48x 93.5mm |
|
Weight |
272.0g |
|
Remark |
3MP HD lens |
