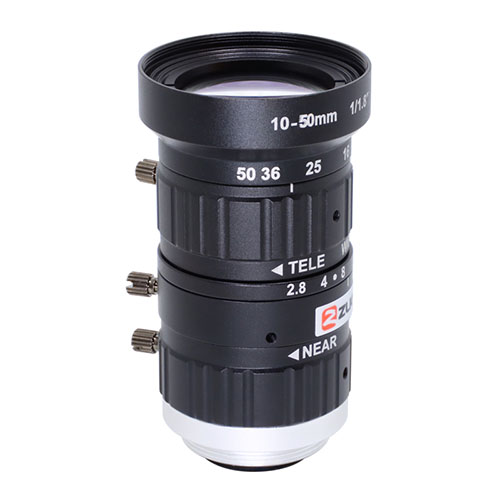

    ZLKC Lens VM1050MP6 10-50mm 6.0Megapixel Manual Iris Lens, 1/1.8” Vari-focal HD Lens ​FA Lens C Mount
    1/1.8″C-Mount 10-50mm
    6MP Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=10-50mm
    ◆ F No.：F1.4-C
    ◆ Features：1/1.8" 10-50mm 6.0Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

    ※ Model
    VM1050MP6

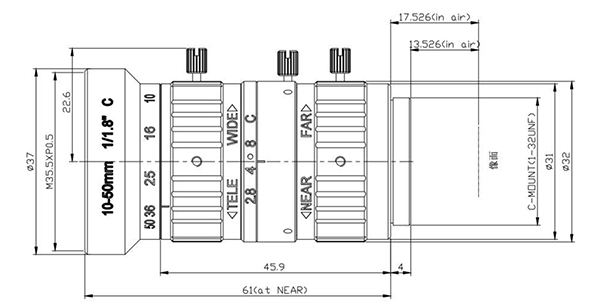

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM1050MP6

    Image Size

    1/1.8-inch

    Focal length

    10-50mm

    F No.

    F2.8-C

    M.O.D(m)

    0.1m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.8"Type

    -1.3%@wide;-0.09%@tele

    Horizontal Angle of View

    1/1.8"Type

    W: 44.2°×36.8°×24.8° ; T: 11.1°×9.3°×6.2°

    1/2"Type

    W: 39.6°×31.8°×23.8° ; T: 10.0°×8.0°×6.0°

    1/3"Type

    W: 29.8°×23.8°×18.0° ; T: 7.5°×6.0°×4.5°

    Mount

    C-Mount

    Filter Thread

    M35.5 P=0.5mm

    Dimension

    Ф37x65mm

    Weight

    102.0g

    Remark

    6MP HD LENS

    VM1050MP6 specification
