    ZLKC Lens VM08050MP3 8-50mm 3Megapixel Manual Iris Lens, 1/2.5” Vari-focal HD Lens ​FA Lens C Mount
    1/2.5″C-Mount 8-50mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.5″ C-mount
    ◆ Focal length：f=8-50mm
    ◆ F No.：F1.4-C
    ◆ Features：1/2.5" 8-50mm 3 Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

    ※ Model
    VM08050MPC

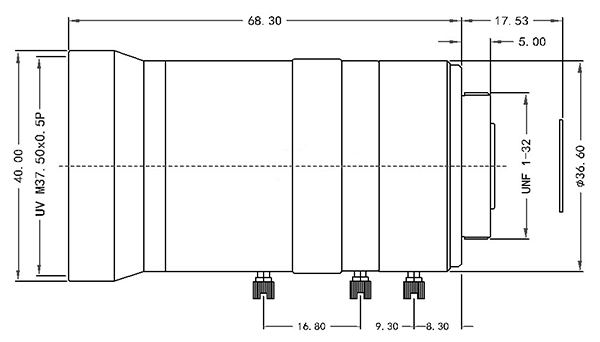

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM08050MP3

    Image Size

    1/2.5-inch

    Focal length

    8-50mm

    F No.

    F1.4-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.5"Type

    -7%@wide

    1/3"Type

    -5%@wide

    Horizontal Angle of View

    1/2.5"Type

    45°×5.4°

    Mount

    C-Mount

    Dimension

    Ф40x68.3mm

    Weight

    249.0g

    Remark

    3MP HD CCTV LENS

    VM08050MP3 specification
