    ZLKC Lens VM0550MPC 5-50mm 3 Megapixel Manual Iris Lens, 1/2.7” Vari-focal HD Lens ​CCTV Lens CS Mount
    1/2.7″CS-Mount 5-50mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=5-50mm
    ◆ F No.：F1.4-C
    ◆ Features：1/2.7-inch 5-50mm 3 Megapixel Manual Iris Lens Vari-focal  Lens CS Mount HD Lens

    ※ Model
    VM05050MPC

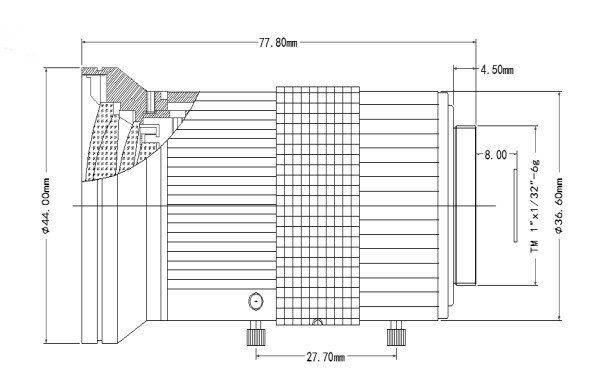

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VM0550MPC

    Image Size

    1/2.7-inch

    Focal length

    5-50mm

    F No.

    F1.4-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -7%@wide

    1/3"Type

    -5%@wide

    Horizontal Angle of View

    1/2.7"Type

    52°×6.2°

    Mount

    CS-Mount

    Dimension

    Ф44x74.5mm

    Weight

    176.0g

    Remark

    3MP IR CCTV LENS

    VM05050MPC specification
