Current location: Home > Machine Vision Lens > Vari-Focal FA Lens >Manual Iris Lenses Series >ZLKC Lens VM2575MPC 2.5-7.5mm 3Megapixel Manual Iris Lens, 1/3” Vari-focal HD Lens ​CCTV Lens CS Mount
    ZLKC Lens VM2575MPC 2.5-7.5mm 3Megapixel Manual Iris Lens, 1/3” Vari-focal HD Lens ​CCTV Lens CS Mount
    1/3″CS-Mount F1.8 2.5-7.5mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure,compact appearance
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/3″ CS-mount
    ◆ Focal length:f=2.5-7.5mm
    ◆ F No.:F1.8-C
    ◆ Features:1/3-inch 2.5-7.5mm 3Megapixel Manual Iris Lens Vari-focal  Lens CS Mount HD Lens

    Model
    VM2575MPC

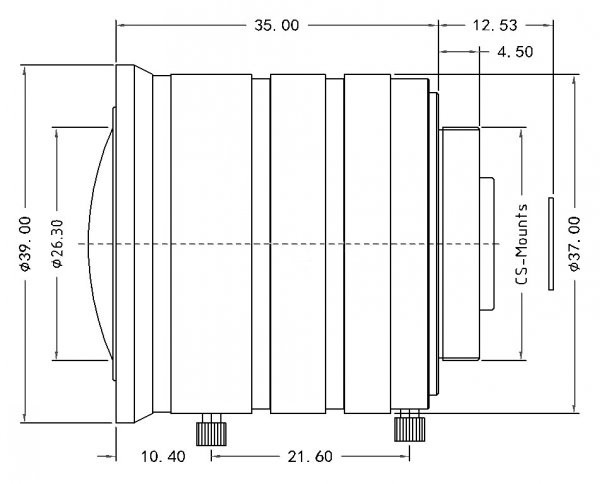

    Dimension


    Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VM2575MPC

    Image Size

    1/3-inch

    Focal length

    2.5-7.5mm

    F No.

    F1.8

    M.O.D(m)

    0.5m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.8"Type

    -5%@wide -2%@tele

    Horizontal Angle of View

    1/1.8"Type

    W141°x 116.7°x77.4° T50.2°x 39.9°x29.7°

    Mount

    CS-Mount

    Flange BFL

    12.53mm

    Dimension

    Φ39x 35mm

    Weight

    73.0g

    Remark

    3MP HD lens

    VM2575MPC specification
