    CCTV Lens VG12050MP5IR 12-50mm 5.0 Megapixel DC Iris Lens,1/1.8” Vari-focal HD Lens C Mount
    1/1.8″C-Mount 12-50mm
    5MP Auto DC iris F1.6-360
    High resolution ,excellent image uniformity
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=12-50mm
    ◆ F No.：F1.6-360
    ◆ Features：1/1.8-inch 12-50mm 5.0Megapixel DC Iris Lens IR CCTV  Lens C Mount HD Lens

    ※ Model
    VG12050MP5IR

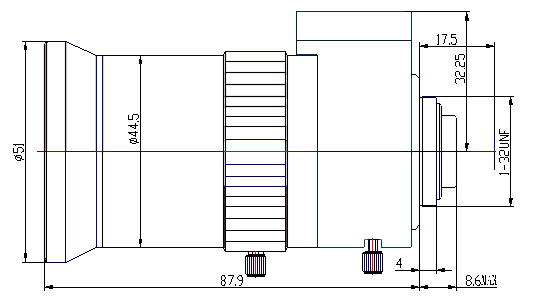

    ※ Dimension

    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG12050MP5IR

    Image Size

    1/1.8-inch

    Focal length

    12-50mm

    F No.

    F1.6-360

    M.O.D(m)

    0.3m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -3%@wide

    1/1.8"Type

    -2%@wide

    Horizontal Angle of View

    1/1.8"Type

    33.8°×8.2°

    Mount

    C-Mount

    Back focal length

    8.9mm-14mm

    Dimension

    Ф51x87.9mm

    Weight

    230.0g

    Remark

    5MP HD Metal material

    VG12050MP5IR specification
