    CCTV Lens HG2812MP5IR 2.8-12mm 5Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    1/2.7″CS-Mount f=2.8-12mm
    High resolution ,excellent image uniformity
    5MP Auto DC iris F1.6-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=2.8-12mm
    ◆ F No.：F1.6-360
    ◆ Features：1/2.7-inch 2.8-12mm 5Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    HG2812MP5IR

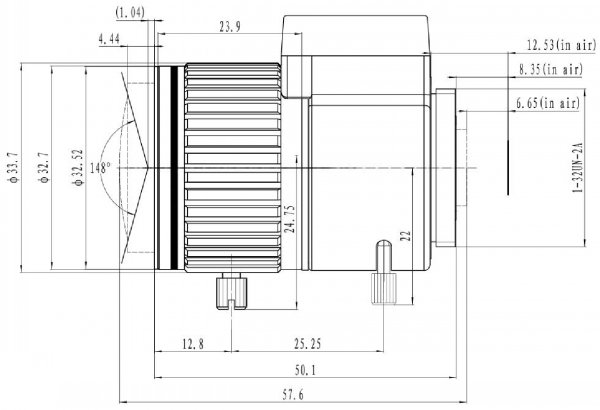

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    HG2812MP5IR

    Image Size

    1/2.7-inch

    Focal length

    2.8-12mm

    F No.

    F1.6-360

    M.O.D(m)

    0.2m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -4.3%

    1/3"Type

    -3.3%

    Horizontal Angle of View

    1/2.7"Type

    W148°×114°×80°;T36°×30°×22°

    Mount

    CS-Mount

    Back focal length

    7.05mm

    Dimension

    Ф32.7x57.6mm

    Weight

    93.0g

    Remark

    5MP IR CCTV LENS

    HG2812MP5IR specification
