    CCTV Lens VG2812MP2IR 2.8-12mm 2Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    1/2.7″CS-Mount 2.8-12mm
    2MP Auto DC iris F1.4
    High resolution ,excellent image uniformity
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=2.8-12mm
    ◆ F No.：F1.6-360
    ◆ Features：HD Lens 1/2.7-inch 2.8-12mm 2.0 Megapixel DC Iris Lens IR CCTV  Lens CS Mount

    ※ Model
    VG2812MP2IR

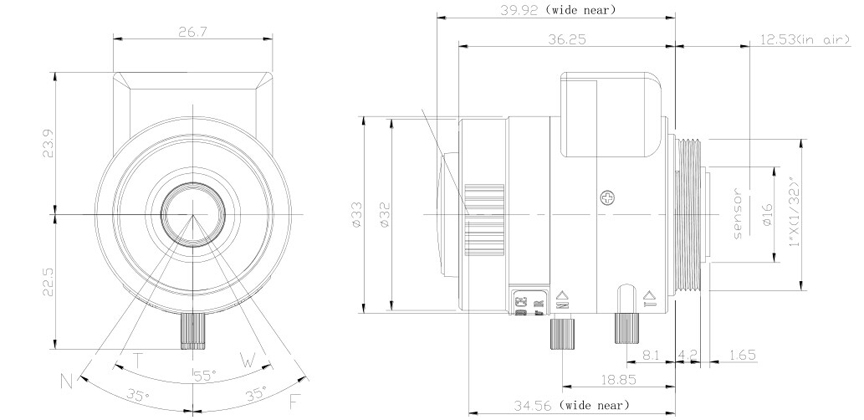

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG2812MP2IR

    Image Size

    1/2.7-inch

    Focal length

    2.8-12mm

    F No.

    F1.4-360

    M.O.D(m)

    0.2m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -11%@wide

    1/3"Type

    -13%@wide

    Horizontal Angle of View

    1/3"Type

    97°×23.4°

    Mount

    CS-Mount

    Dimension

    Ф32x39mm

    Weight

    55.0g

    Remark

    2MP IR CCTV LENS

    VG2812MP2IR specification
