    CCTV Lens VG10120MP 10-120mm 2Megapixel DC Iris Lens,1/3” Vari-focal HD Lens CS Mount
    1/3″CS-Mount f=10-120mm
    High resolution ,excellent image uniformity
    2MP Auto DC iris F1.6-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/3″ CS-mount
    ◆ Focal length：f=10-120mm
    ◆ F No.：F1.6-360
    ◆ Features：1/2.7-inch 10-120mm 2Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    VG10120MP

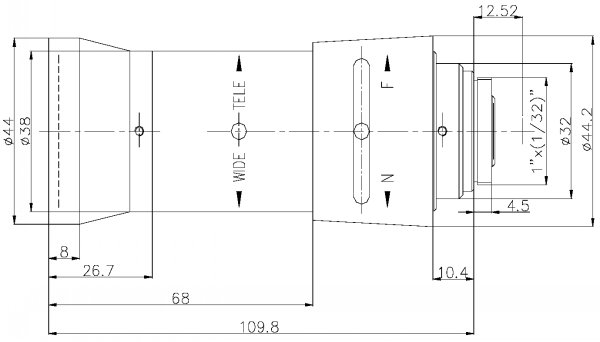

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG10120MP

    Image Size

    1/3-inch

    Focal length

    10－120mm

    F No.

    F1.6-360

    M.O.D(m)

    1.5m

    控制方式Operation

    Iris

    Auto 

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -3%

    Horizontal Angle of View

    1/2.7"Type

    W27°xT2.3°

    Mount

    CS-Mount

    Back focal length

    7.2mm

    Dimension

    Ф44x109.8mm

    Weight

    210.0g

    Remark

    2MP HD CCTV LENS

    VG10120MP specification
