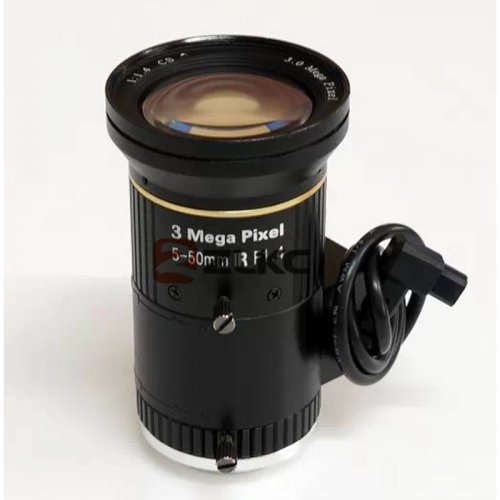

    CCTV Lens VG0550MP3IR 5-50mm 3Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    1/2.7″ CS-Mount 5-50mm
    High resolution ,excellent image uniformity
    3MP Auto DC iris F1.4-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=5-50mm
    ◆ F No.：F1.4-360
    ◆ Features：1/2.7-inch 5-50mm 3 Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    VG0550MP3IR

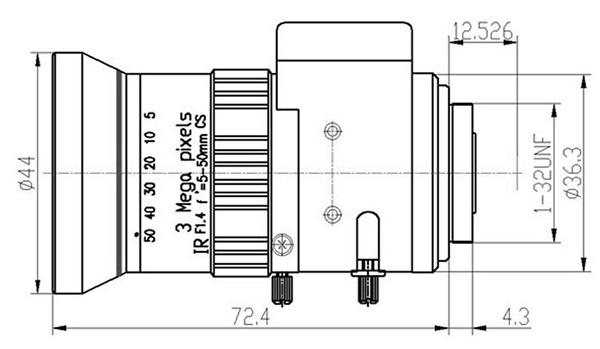

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG0550MP3IR

    Image Size

    1/2.7-inch

    Focal length

    5-50mm

    F No.

    F1.4-360

    M.O.D(m)

    0.3m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -7%@wide

    1/3"Type

    -8%@wide

    Horizontal Angle of View

    1/2.7"Type

    52°×6.2°

    Mount

    CS-Mount

    Dimension

    Ф44x76.8mm

    Weight

    255.0g

    Remark

    3MP IR CCTV LENS

    VG0550MP3IR specification
