CCTV Lens VG3816MP8IR 3.8-16mm 8Megapixel DC Iris Lens,1/1.8” Vari-focal HD Lens CS Mount
1/1.8″CS-Mount 3.8-16mm
High resolution ,excellent image uniformity
8MP Auto DC iris F1.5-360
Locking set screws for focus and zoom
IR Correction Lens, compact structure
For Security Camera,CCTV Lens
View phone Inquiry now
Tel:+86 13570283679
IntroductionSpecificationsDownloadOther Product
※ Product Features
◆ Brand：ZLKC
◆ Image Size：1/1.8″ CS-mount
◆ Focal length：f=3.8-16mm
◆ F No.：F1.5-360
◆ Features：1/1.8-inch 3.8-16mm 8.0 Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

※ Model
VG3816MP8IR

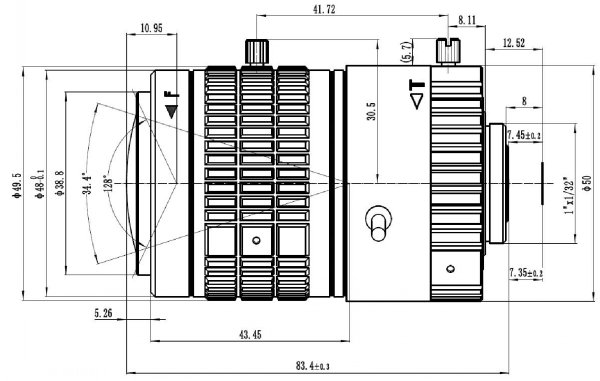

※ Dimension


※ Industries Application
These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

Model

VG3816MP8IR

Image Size

1/1.8-inch

Focal length

3.8-16mm

F No.

F1.5-360

M.O.D(m)

0.3m

Operation

Iris

Auto

Focus

Manual

Zoom

Manual

Horizontal Angle of View

1/1.8"Type

128°×103.5°×75.5°;34.4°×28°×20.7°

1/2"Type

114°×91.5°×68°;31.2°×25.8°×18.7°

1/3"Type

85.6°×68°×51°;23.3°×18.7°×14°

Distortion

1/1.8"Type

-15%@wide

Mount

CS-Mount

Dimension

Ф48x83.4mm

Back focal length

7.35mm

IR Correction

Yes

Weight

230.0g

Remark

8MP IR CCTV LENS

VG3816MP8IR specification
