    CCTV Lens VG0734MP12 7-34mm 12Megapixel DC Iris Lens,1/1.7” Vari-focal HD Lens CS Mount
    1/1.7″CS-Mount 7-34mm
    High resolution ,excellent image uniformity
    12MP Auto DC iris F0.95
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.7″ CS-mount
    ◆ Focal length：f=7-34mm
    ◆ F No.：F0.95
    ◆ Features：1/1.7-inch 7-34mm 12Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    VG0734MP12

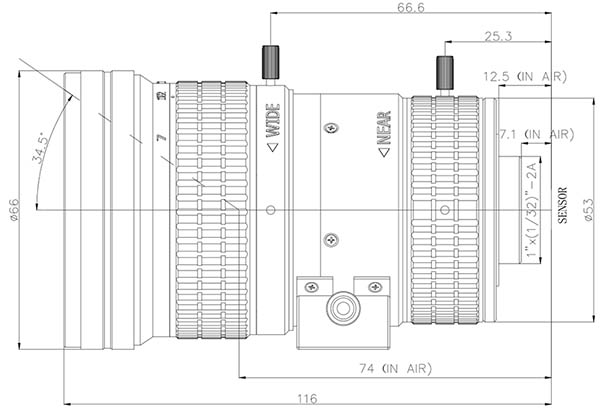

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG0734MP12

    Image Size

    1/1.7-inch

    Focal length

    7-34mm

    F No.

    F0.95

    M.O.D(m)

    0.5m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Horizontal Angle of View

    1/1.7"Type

    66.5°×53.6°×40.5°（W） 20.5°×16.7°×12.4°（T）

    Distortion

    1/1.7"Type

    -3%@wide

    Mount

    CS-Mount

    Dimension

    Ф66x109mm

    Back focal length

    7.1mm

    IR Correction

    Yes

    Weight

    560.0g

    Remark

    12MP CCTV LENS

    VG0734MP12 specification
