CCTV Lens VG06060MPIR 6-60mm 2Megapixel DC Iris Lens,1/3” Vari-focal HD Lens CS Mount
1/3″CS-Mount f=6-60mm
High resolution ,excellent image uniformity
2MP Auto DC iris F1.6-360
Locking set screws for focus and zoom
IR Correction Lens, compact structure
For Security Camera,CCTV Lens
View phone Inquiry now
Tel:+86 13570283679
IntroductionSpecificationsDownloadOther Product
※ Product Features
◆ Brand：ZLKC
◆ Image Size：1/3″ CS-mount
◆ Focal length：f=6-60mm
◆ F No.：F1.6-360
◆ Features：1/3-inch 6-60mm 2 Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

※ Model
VG06060MPIR

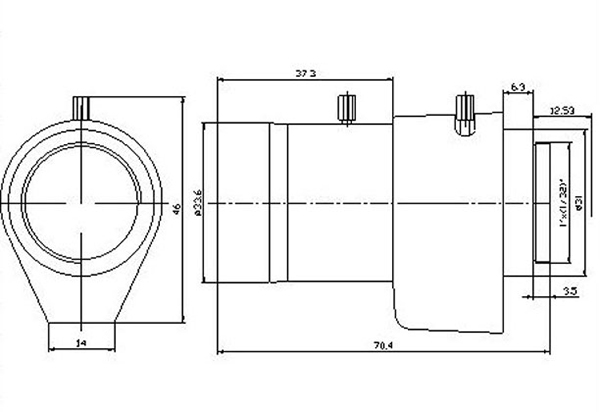

※ Dimension


※ Industries Application
These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

Model

VG06060MPIR

Image Size

1/3-inch

Focal length

6-60mm

F No.

F1.6-360

M.O.D(m)

0.2m

Operation

Iris

Auto

Focus

Manual

Zoom

Manual

Distortion

1/2.7"Type

-9%@wide

1/3"Type

-10%@wide

Horizontal Angle of View

1/3"Type

42°×4.5°

Mount

CS-Mount

Dimension

Ф37x63.7mm

Weight

132.0g

Remark

2MP HD CCTV LENS

VG06060MPIR specification
