Current location: Home >CCTV Lens >Surveillance Lens >Auto Iris Vari-focal Lens >CCTV Lens VG3610IR4K 3.6-10mm DC Iris 4K HD Lens,1/1.8” Vari-focal Lens CS Mount
    CCTV Lens VG3610IR4K 3.6-10mm DC Iris 4K HD Lens,1/1.8” Vari-focal Lens CS Mount
    1/1.8″CS-Mount 3.6-10mm
    High resolution ,excellent image uniformity
    4K HD Auto DC iris F1.5-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/1.8″ CS-mount
    ◆ Focal length:f=3.6-10mm
    ◆ F No.:F1.5-360
    ◆ Features:1/1.8-inch 3.6-10mm DC Iris Lens IR CCTV  Lens CS Mount 4K HD Lens

    Model
    VG3610IR4K

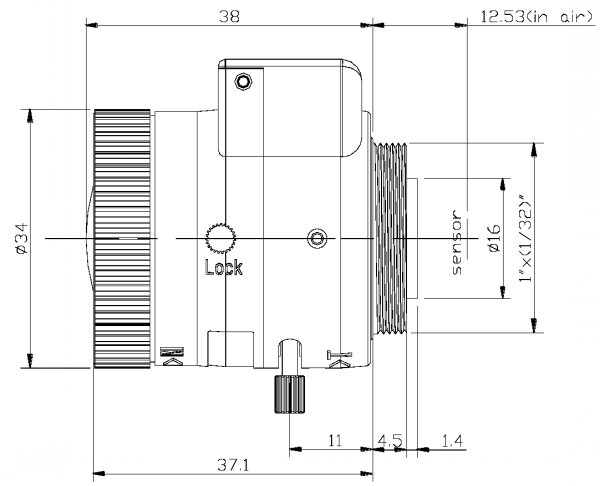

    Dimension


    Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG3610IR4K

    Image Size

    1/1.8-inch

    Focal length

    3.6-10mm

    F No.

    F1.5-360

    M.O.D(m)

    0.2m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -7%@wide

    1/1.8"Type

    -5%@wide

    Horizontal Angle of View

    1/1.8"Type

    86.8°×33.5°

    Mount

    CS-Mount

    Back focal length

    8mm-20mm

    Dimension

    Ф34x37.1mm

    Weight

    52.0g

    Remark

    4K (3840×2160)HD CCTV LENS

    VG3610IR4K specification
