Current location: Home >CCTV Lens >Surveillance Lens >Auto Iris Vari-focal Lens >CCTV Lens VG2812MPIR 2.8-12mm 2Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    CCTV Lens VG2812MPIR 2.8-12mm 2Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    1/2.7″CS-Mount 2.8-12mm
    2MP Auto DC iris F1.4-360
    High resolution ,excellent image uniformity
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/2.7″ CS-mount
    ◆ Focal length:f=2.8-12mm
    ◆ F No.:F1.4-360
    ◆ Features:1/2.7-inch 2.8-12mm 2Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    Model
    VG2812MPIR

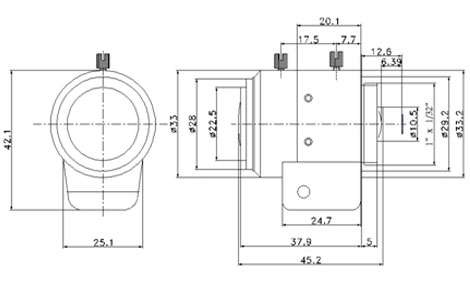

    Dimension


    Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG2812MPIR

    Image Size

    1/2.7-inch

    Focal length

    2.8-12mm

    F No.

    F1.4-360

    M.O.D(m)

    0.2m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -15%@wide

    1/3"Type

    -17%@wide

    Horizontal Angle of View

    1/2.7"Type

    98°×24°

    Mount

    CS-Mount

    Dimension

    Ф29x38mm

    Weight

    78.0g

    Remark

    2MP IR CCTV LENS

    VG2812MPIR specification
